Thông số kỹ thuật WDR-480-24
| Thông số | Giá trị |
|---|---|
| Mã sản phẩm | WDR-480-24 |

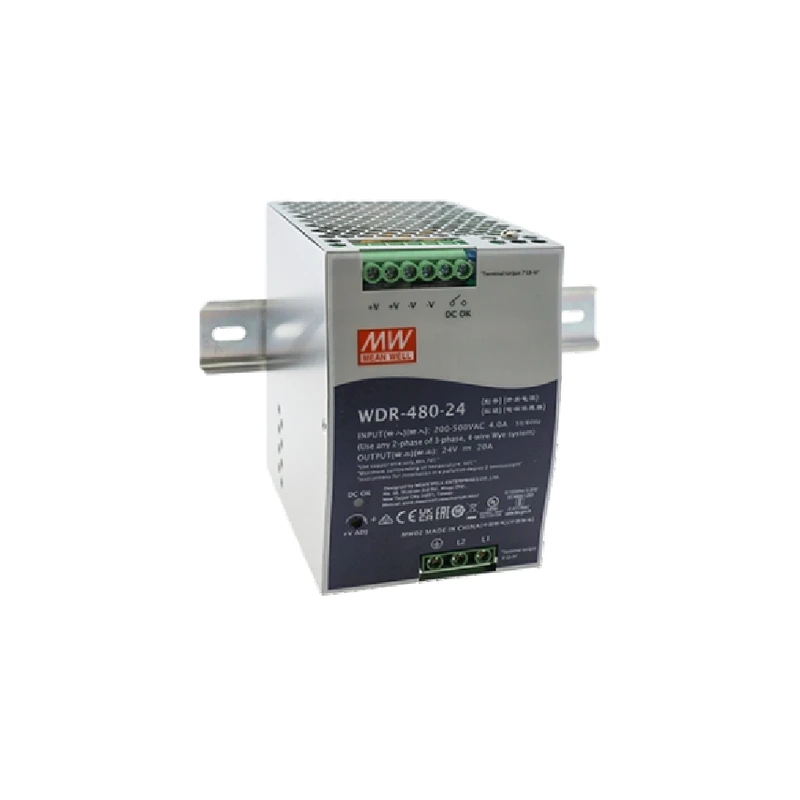

| Tên sản phẩm | WDR-480-24 480W Single Output Industrial DIN RAIL Power Supply |
| DC VOLTAGE | 24V |
| RATED CURRENT | 20A |
| CURRENT RANGE | 0 ~ 20A |
| RATED POWER | 480W |
| RIPPLE & NOISE (max.) Note.2 | 100mVp-p |
| VOLTAGE ADJ. RANGE | 24 ~ 28V |
| VOLTAGE TOLERANCE Note.3 | ±1.0% |
| LINE REGULATION | ±0.5% |
| LOAD REGULATION | ±1.0% |
| SETUP, RISE TIME | 800ms, 150ms/400VAC 2000ms, 150ms/230VAC at full load |
| HOLD UP TIME (Typ.) | 18ms / 400VAC 16ms / 230VAC at full load |
| VOLTAGE RANGE Note.6 | 180 ~ 550VAC 254 ~ 780VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF≥0.84/400VAC PF≥0.84/230VAC |
| EFFICIENCY (Typ.) | 92% |
| AC CURRENT (Typ.) | 1.6A/400VAC 4A/230VAC |
| NRUSH CURRENT (Typ.) | COLD START 50A |
| LEAKAGE CURRENT | <3.5mA / 530VAC |
| OVERLOAD | 105 ~ 130% rated output power Protection type : Constant current limiting, unit will shut down after 3 sec. ,auto-recovery after 1 minute if the fault condition is removed |
| OVER VOLTAGE | 29 ~ 33V Protection type : Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed |
| OVER TEMPERATURE | 95℃±5℃ (TSW) detect on heatsink of power switch Protection type : Shut down o/p voltage, recovers automatically after temperature goes down |
| DC OK REALY CONTACT RATINGS (max.) | 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load |
| WORKING TEMP. Note.5 | -30 ~ +70℃ (Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 |
| SAFETY STANDARDS | UL508,EAC TP TC 004,BIS IS13252(Part1):2010/IEC 609501:2005(except for 48) approved,IEC62368-1 CB approved by SIQ, design refer to BS EN/EN62368-1, AS/NZS 62368.1,GL; (meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC |
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, EAC TP TC 020 approved |
| MTBF | 825.4K hrs min. Telcordia SR-332 (Bellcore) ; 112.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 85.5*125.2*128.5mm (W*H*D) |
| PACKING | 1.7Kg; 8pcs/14.6Kg/0.9CUFT |
