Thông số kỹ thuật UMP-400-48
| Thông số | Giá trị |
|---|---|
| Mã sản phẩm | UMP-400-48 |

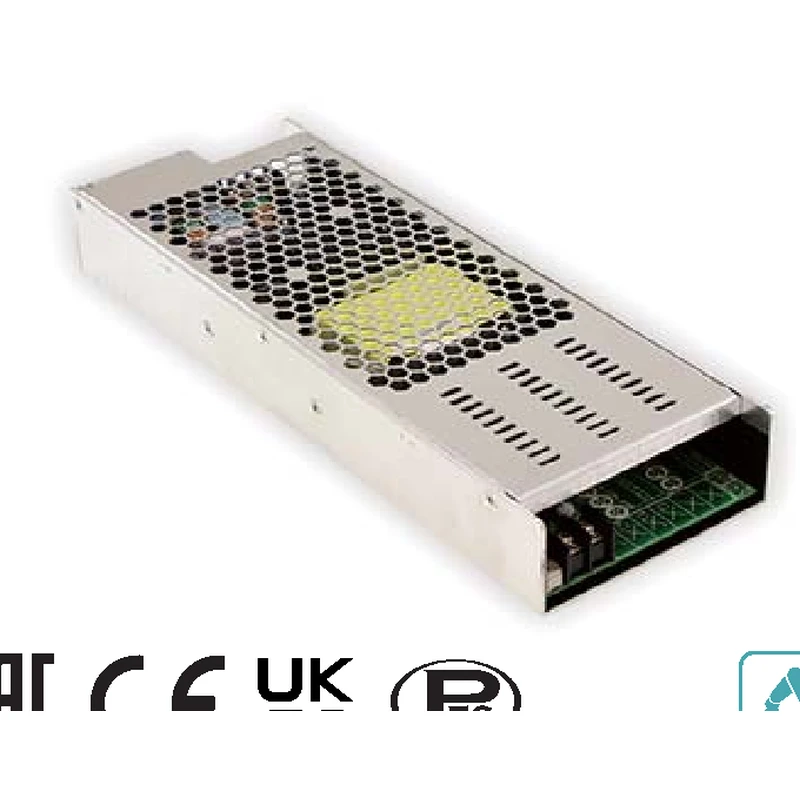

| Tên sản phẩm | UMP-400-48 400W Flexible Configurable Fanless Power |
| DC VOLTAGE | 48V |
| RATED CURRENT | 8.3A |
| RATED OUTPUT POWER | 400W max. |
| VOLTAGEADJ. RANGE IPPLE & NOISE (max.) Note.2 OLTAGE TOLERANCE Note.3 INE REGULATION OAD REGULATION ETUP, RISE TIME OLD UPTIME (Typ.) | 22.8 ~ 25.2V 45.6 ~ 50.4V 240mVp-p 360mVp-p ±1.0% ±1.0% ±0.5% ±0.5% ±1.0% ±1.0% 1000ms, 50ms/230Vac ; 2000ms, 50ms/115Vac 12ms@230Vac ;12ms@115Vac |
| DC VOLTAGE | CH1 output 24V or 48V + NID DC modules for CH2,3,4 |
| TOTALOUTPUT POWER | CH2,3,4 output power can be flexible depending on NID selection. Combined power on all channels must not exceed 400W |
| VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~370VDC |
| FREQUENCYRANGE | 47 ~ 63Hz |
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load |
| EFFICIENCY(Typ.) Note.5 | 88.5%, full case load with each type of module at nominal voltage |
| AC CURRENT | 2.5A/230VAC 4.7A/115VAC |
| NRUSH CURRENT | 40A/230VAC 25A/115VAC |
| LEAKAGE CURRENT | Earth leakage current <300uA/ 264VAC,Touch current <100uA/264VAC |
| OVERLOAD | 105 ~ 135% rated output power Protection type CH1: constant current limiting protection ( If a long short circuit continues, the OTPaction will be triggered ), CH2,CH3,CH4: Hiccup mode protection |
| OVER VOLTAGE | 52.8 ~ 62.4V Protection type: shut down o/p voltage, re-power on to recover |
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover |
| WORKING TEMP. | -30 ~ +70℃(Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP. | -40 ~ +85℃ |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) |
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, 60 min. each along X,Y, Z axes |
| OPERATINGALTITUDE Note.6 | 5000meters /OVCⅡ |
| OVER VOLTAGE CATEGORY | Ⅲ; According to IEC62368-1; altitude up to 2000 meters |
| SAFETYSTANDARDS | EACTPTC 004; UL62368-1, Dekra BS EN/EN62368-1 approved; Design refer toANSI/AAMI ES60601-1,TUV BS EN/EN60601-1, IEC 60601-1 (3rdedition) |
| SOLATION LEVEL | Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP |
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 1.5KVAC |
| SOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH |
| PACKING | 0.88Kg; 14pcs/13Kg/0.89CUFT |
| Copyright | Haiphongtech.vn |
