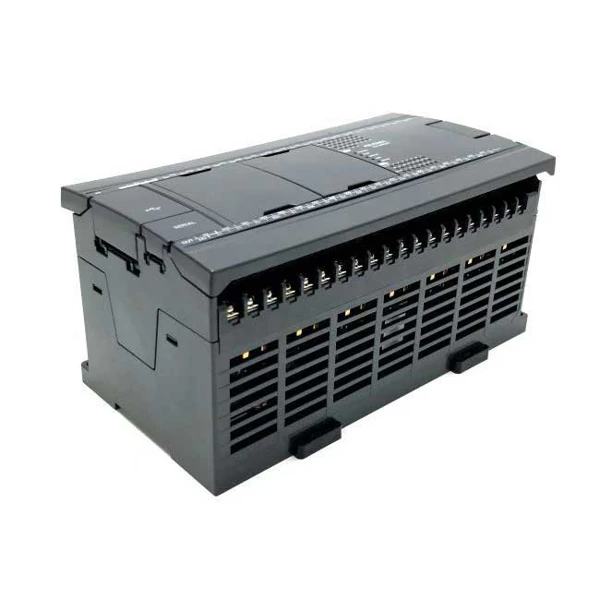

Thông số kỹ thuật KV-N60AR
| Thông số | Giá trị |
|---|---|
| Model | KV-N60AR |
| Power voltage | 100 to 240 VAC (+10%/-15%) |
| Operating ambient temperature | 0 to 55°C (32 to 131°F) (no freezing) |
| Operating ambient humidity | 5 to 95% RH (no condensation) |
| Operating environment | As little dust and corrosive gas as possible |
| Noise immunity | 1500 V peak-to-peak or more, pulse duration 1 μs, 50 ns |
| Withstand voltage | 1500 VAC for 1 minute |
| Insulation resistance | 50 MΩ or more (500 VDC megger) |
| Output power supply voltage | 24 VDC (±10%; output capacity: 0.6 A) |
| Storage temperature | −25 to +75°C (−13 to +167°F) |
| Vibration resistance – Intermittent vibration (5 to 9 Hz) | Amplitude: 3.5 mm (0.14″) |
| Vibration resistance – Intermittent vibration (9 to 150 Hz) | Acceleration: 9.8 m/s² (32.2’/s²) |
| Vibration resistance – Continuous vibration (5 to 9 Hz) | Amplitude: 1.75 mm (0.07″) |
| Vibration resistance – Continuous vibration (9 to 150 Hz) | Acceleration: 4.9 m/s² (16.1’/s²) |
| Shock resistance | Acceleration: 150 m/s² (492.1’/s²), 11 ms, three times in each X, Y, Z directions |
| Operating altitude | 2000 m (6561.7′) |
| Overvoltage category | AC: II, DC: I |
| Pollution degree | 2 |
| Calculation control method | Program storage method |
| I/O control method | Refresh method |
| Program language | Expanded ladder, KV Script, mnemonic |
| Number of instructions | 335 types and 690 instructions |
| Instruction execution speed | 50 ns minimum |
| Program capacity | 16k steps |
| Maximum number of attachable I/O units | 8 |
| Maximum number of I/O points | 256 (excluding the base unit I/O) |
| Input relay/Output relay/Internal auxiliary relay | Total of 9600 points 1 bit (R000 to R59915) |
| Link relay | 8192 points 1 bit (B0 to B1FFF) |
| Internal auxiliary relay | 9600 points 1 bit (MR000 to MR59915) |
| Latch relay | 3200 points 1 bit (LR000 to LR19915) |
| Control relay | 1440 points 1 bit (CR000 to CR8915) |
| Timer | 512 points 32 bit (T0 to T511) |
| Counter | 256 points 32 bit (C0 to C255) |
| Data memory | 32768 points 16 bit (DM0 to DM32767) |
| Link register | 16384 points 16 bit (W0 to W3FFF) |
| Temporary memory | 512 points 16 bit (TM0 to TM511) |
| High-speed counter | 4 points (CTH0 to CTH3), 32-bit automatic reset counter |
| High-speed counter comparator | 8 points (CTC0 to CTC7), 32 bits, two points per high-speed counter |
| Index register | 12 points 32 bit (Z01 to Z12) |
| Control memory | 9000 points 16 bit (CM0 to CM8999) |
| Base unit I/O | Input: 36 points, output: 24 points |
| Device comment | 20000 when a maximum-length ladder program is written with no labels |
| Label | 28000 when a maximum-length ladder program is written with no device comments |
| Program memory | Flash ROM can be rewritten 10000 times |
| Device | Nonvolatile RAM |
| Self-diagnosis function | CPU error, RAM error, and other problems |
| Relay number | General input: R000 to R007, R100 to R203 (28 points) |
| Input mode | 24 VDC input (open collector) |
| Maximum input voltage | 26.4 VDC |
| Rated input voltage | 24 VDC |
| Minimum ON voltage | 19 VDC |
| Maximum OFF current | 1.5 mA |
| Common method | All points/1 common |
| Circuit delay time | Max. 50 µs (General input), Max. 2 μs (High-speed A-phase and B-phase input) |
| Input time constant | Normal: 10 ms |
| Input time constant setting | 10 µs to 10 ms with digital filter |
| Response frequency | 100 kHz (single phase) |
| Relay number (Output) | R500 to R607 (24 points) |
| Output mode | Relay |
| Rated load | 250 VAC/30 VDC, 2 A |
| ON/OFF response time | 10 ms or less |
| Relay life | Electrical: 100000 cycles, Mechanical: 20000000 cycles |
| Relay replacement | Impossible |
| Communication standard | RS-232C |
| Transmission specifications | Baud rate: 1200 to 115200 bps |
| Transmission method | Full duplex |
| Start bit | 1 bit |
| Data bits | 7 bits, 8 bits |
| Stop bits | 1 bit, 2 bits |
| Parity | Even, odd, none |
| Transmission distance | 15 m (49.2′) |
| Number of transmission units | 1 |
| Indication | SD (green), RD (red) |
| Internal current consumption | 91 VA |
| Weight | Approx. 820 g |
