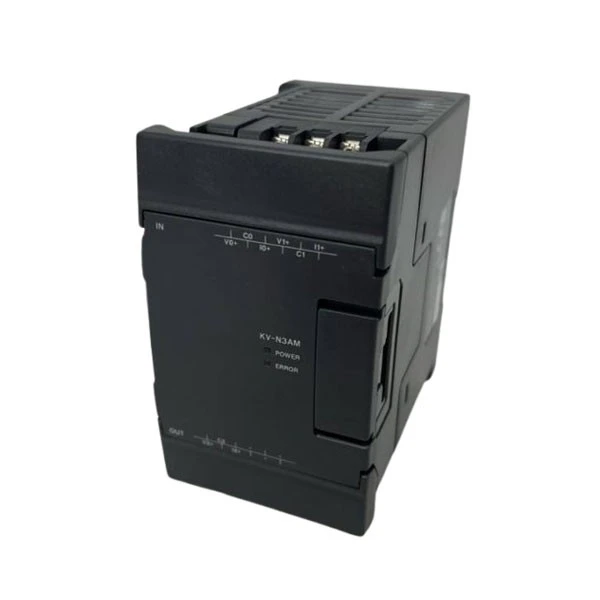

Thông số kỹ thuật KV-N3AM
| Thông số | Giá trị |
|---|---|
| Model | KV-N3AM |
| Conversion Speed | 80 μs/channel*1 |
| Conversion Type | A/D conversion, D/A conversion |
| Points | A/D conversion: 2 (single-ended)D/A conversion: 1 |
| Range/Resolution (-10V to +10V Voltage) | A/D conversion: 1/8000 2.5 mVD/A conversion: 1/8000 2.5 mV*2 |
| Range/Resolution (0 to 10V Voltage) | A/D conversion: 1/4000 2.5 mVD/A conversion: 1/4000 2.5 mV*2 |
| Range/Resolution (0 to 5V Voltage) | A/D conversion: 1/4000 1.25 mVD/A conversion: 1/4000 1.25 mV*2 |
| Range/Resolution (1 to 5V Voltage) | A/D conversion: 1/3200 1.25 mVD/A conversion: 1/3200 1.25 mV*2 |
| Range/Resolution (0 to 20mA Current) | A/D conversion: 1/4000 5 μAD/A conversion: 1/4000 5 μA*2 |
| Range/Resolution (4 to 20mA Current) | A/D conversion: 1/3200 5 μAD/A conversion: 1/3200 5 μA*2 |
| Conversion Precision (Voltage, Without Temp Comp) | A/D: ±0.3% F.S. (25°C ±5°C), ±0.5% F.S. (0 to 55°C)D/A: ±0.3% F.S. (25°C ±5°C), ±0.5% F.S. (0 to 55°C) |
| Conversion Precision (Voltage, With Temp Comp) | A/D: ±0.3% F.S. (0 to 55°C)D/A: ±0.3% F.S. (25°C ±5°C), ±0.5% F.S. (0 to 55°C) |
| Conversion Precision (Current, Without Temp Comp) | A/D: ±0.4% F.S. (25°C ±5°C), ±0.6% F.S. (0 to 55°C)D/A: ±0.3% F.S. (25°C ±5°C), ±0.5% F.S. (0 to 55°C) |
| Conversion Precision (Current, With Temp Comp) | A/D: ±0.4% F.S. (0 to 55°C)D/A: ±0.3% F.S. (25°C ±5°C), ±0.5% F.S. (0 to 55°C) |
| Input Resistance (Voltage) | A/D conversion: 5 MΩ |
| Input Resistance (Current) | A/D conversion: 250 Ω |
| Absolute Maximum Input (Voltage) | A/D conversion: ±15 V |
| Absolute Maximum Input (Current) | A/D conversion: ±30 mA |
| Isolation Method (Analog Input) | Isolated (photocoupler, transformer) |
| Isolation Method (Analog Input – Output) | Non-isolated |
| Isolation Method (Analog Input Channels) | A/D conversion: Non-isolated |
| Minimum Load Resistance (Voltage) | D/A conversion: 1 kΩ |
| Maximum Load Resistance (Current) | D/A conversion: 600 Ω |
| Special Functions (A/D Conversion) | Input range switching, temperature fluctuation compensation enabling/disabling, channel skip, scaling, special data offset, peak-/bottom-hold, zero clip, zero shift, comparator, averaging (time-specified, count-specified, moving average), disconnection detection |
| Special Functions (D/A Conversion) | Output range switching, output data offset, scaling, error hold, upper/lower limit alarm, output limit, channel skip, output in PROG mode |
| Internal Current Consumption | 120 mA or less |
| Weight | 200 g |
