Thông số kỹ thuật XLG-240-48-ABV
| Thông số | Giá trị |
|---|---|
| Mã sản phẩm | XLG-240-48-ABV |

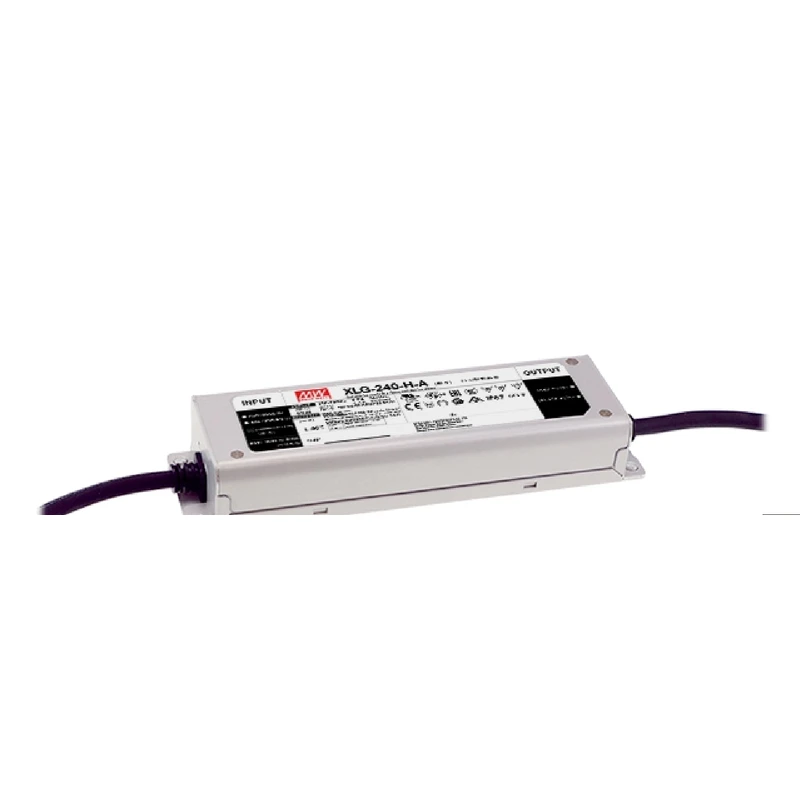

| Tên sản phẩm | XLG-240-48-ABV 240W Constant Power Mode LED Driver |
| RATED CURRENT (Default) | 700mA |
| RATED POWER | 239.4W |
| CONSTANT CURRENT REGION Note.2 | 178~ 342V |
| FULL POWER CURRENT RANGE | 700~1050mA |
| OPEN CIRCUIT VOLTAGE (max.) | 370V |
| CURRENT ADJ. RANGE | Adjustable for A/AB-Type only (via the built-in potentiometer) 350~1050mA 700~2100mA 2400~6660mA |
| CURRENT RIPPLE | 5.0%(@ Load≥50% rated voltage) |
| CURRENT TOLERANCE | ±4% |
| SET UP TIME Note.6 | 5 0 0ms/230VAC, 1200ms/115VAC |
| VOLTAGE RANGE Note.5 | 100 ~ 305VAC 142 ~ 431VDC (Please refer to “STATIC CHARACTERISTIC” and “ DRIVING METHODS OF LED MODULE”section) |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to “Power Factor Characteristic” section) |
| TOTAL HARMONIC DISTORTION | THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to “TOTAL HARMONIC DISTORTION (THD)” section |
| EFFICIENCY (Typ.) | 93% |
| AC CURRENT (Typ.) | 2.7A / 115VAC 1.3A / 230VAC 1.1A / 277VAC |
| NRUSH CURRENT(Typ.) | COLD START 85A(twidth=500μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 |
| MAX. NO. of PSUs on 16A CIRCUIT BREAKER | 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC |
| LEAKAGE CURRENT | <0.75mA / 277VAC |
| STANDBY POWER CONSUMPTION | Standby power consumption <0.5W for AB-Type(Dimming OFF)(for standard version) |
| SHORT CIRCUIT | Hiccup mode or constant current limiting, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 380 ~ 450V 190~ 240V 61 ~ 85V Shut down output voltage, re-power on to recovery |
| NPUT OVER VOLTAGE Note.7 | 320 ~ 390VAC (Shut down output when the input exceeds protection voltage,recovers automatically after fault condition is removed) Can survive input voltage stress of 440Vac for 48 hours |
| OVER TEMPERATURE | Shut down output voltage, re-power on to recover |
| WORKING TEMP. | Tcase=-40 ~ +90℃(Please refer to “OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+90℃ |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 60℃) |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
| SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1, GB/T19510.213; EAC TP TC 004; J61347-1(H29), J61347-2-13(H29),KC61347-1,KC61347-2-13,IS15885(Part2/Sec13); NOM-058-SCFI-2017(except for Blank type); IP67 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC |
| SOLATION RESISTANCE EMC EMISSION EMC IMMUNITY | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH |
| MTBF | 2496.2K hrs min. Telcordia SR-332(Bellcore) ; 219.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 219*63*35.5mm (L*W*H) |
| PACKING | 1Kg;16pcs / 16Kg / 0.8CUFT |
