Thông số kỹ thuật UHP-750-12
| Thông số | Giá trị |
|---|---|
| Mã sản phẩm | UHP-750-12 |

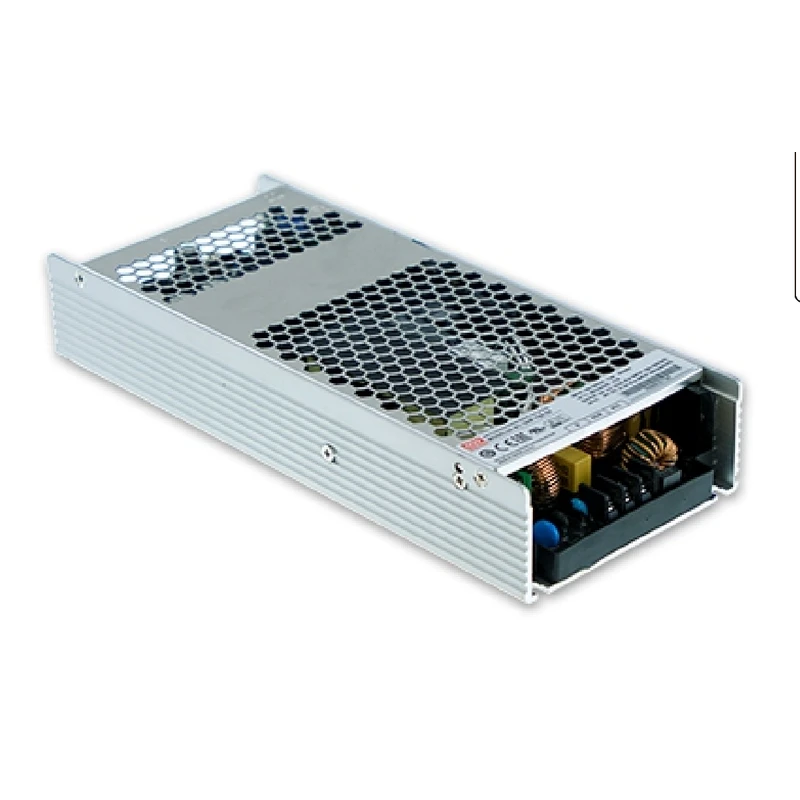

| Tên sản phẩm | UHP-750-12 750W Slim Type with PFC Switching Supply |
| DC VOLTAGE | 12V |
| RATED CURRENT | 60A |
| RATED POWER | 720W |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p |
| VOLTAGE ADJ. RANGE | 12~14.4V |
| VOLTAGE TOLERANCE Note.3 | ±1.0% |
| LINE REGULATION | ±0.5% |
| LOAD REGULATION | ±0.5% |
| SETUP, RISE TIME Note.4 | 1000ms, 50ms/230VAC 1000ms,50ms/115VAC at full load |
| HOLD UP TIME (Typ.) | 12ms/230VAC 12ms/115VAC |
| VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) Note.4 | PF≥0.95/230VAC PF≥0.98/115VAC at full load |
| EFFICIENCY (Typ.) | 93.5% |
| AC CURRENT (Typ.) | 7.5A/115VAC 3.8A/230VAC |
| INRUSH CURRENT (Typ.) | Cold start 20A/115VAC 40A/230VAC |
| LEAKAGE CURRENT | <0.75mA / 240VAC |
| OVERLOAD | 105~125% rated output power Protection type: Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 14.5 ~ 16V Protection type: Shut down O/P voltage, re-power on to recover |
| OVER TEMPERATURE | Protection type: Shut down O/P voltage, recovers automatically after temperature goes down |
| DC-OK SIGNAL | Contact rating(max.): 30Vdc/1A resistive load |
| WORKING TEMP. | -30 ~ +70℃(Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| SAFETY STANDARDS | UL62368-1,TUV BS EN/EN62368-1, BIS IS13252(Part1): 2010/IEC 60950-1: 2005(NOTE 7), EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P: 3.75KVAC I/P-FG: 2KVAC O/P-FG: 1.25KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/ 70%RH |
| EMC EMISSION EMC IMMUNITY MTBF | Parameter |
| DIMENSION | 237*100*41mm (L*W*H) |
