Thông số kỹ thuật UHP-350R-4.2
| Thông số | Giá trị |
|---|---|
| Mã sản phẩm | UHP-350R-4.2 |

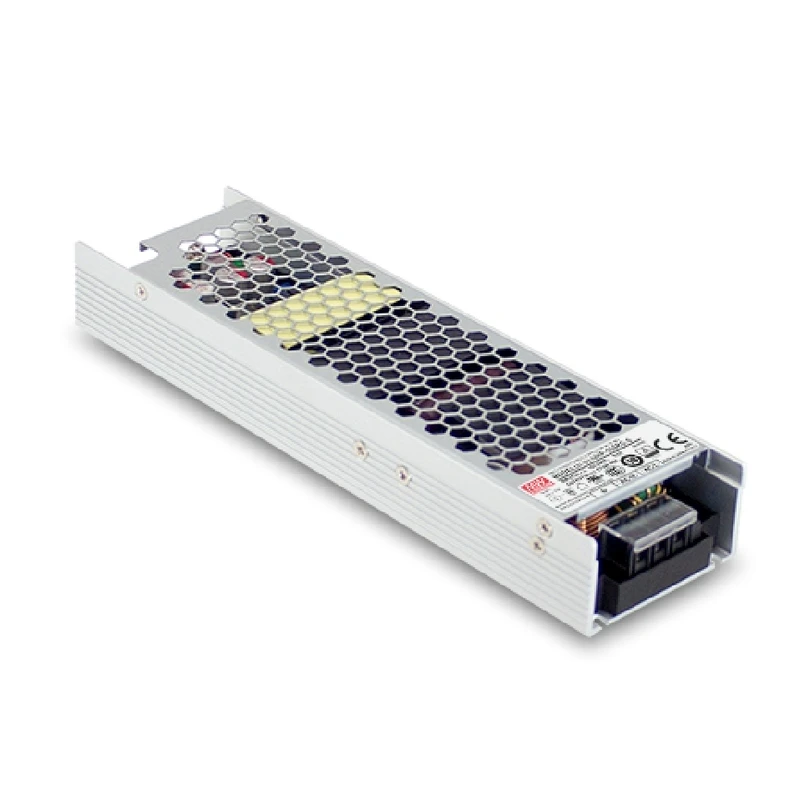

| Tên sản phẩm | UHP-350R-4.2 350W Slim Type with PFC Switching Power Supply |
| DC VOLTAGE | 4.2V |
| RATED CURRENT | 60A |
| RATED POWER | 252W |
| RIPPLE & NOISE (max.) Note.2 | 150mVp-p |
| VOLTAGE ADJ. RANGE | 3.6~4.4V |
| VOLTAGE TOLERANCE Note.3 | ±2.0% |
| LINE REGULATION | ±0.5% |
| LOAD REGULATION | ±1.0% |
| SETUP, RISE TIME | 2000ms, 80ms/230VAC; 3000ms, 80ms/115VAC at full load;550ms/230VAC for 55V setup time |
| HOLD UP TIME (Typ.) | 10ms/230VAC 10ms/115VAC |
| VOLTAGE RANGE Note.4 | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| POWER FACTOR (Typ.) | PF≥0.94/230VAC PF≥0.98/115VAC at full load |
| EFFICIENCY (Typ.) Note.7 | 89% |
| AC CURRENT (Typ.) | 4A/115VAC 2A/230VAC |
| INRUSH CURRENT (Typ.)Note.8 | Cold start 30A/115VAC 60A/230VAC |
| LEAKAGE CURRENT | <0.75mA / 240VAC |
| OVERLOAD | 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 3.8 ~ 4.6V 4.62 ~ 5.46V5.75 ~ 6.75V 13.2 ~ 15.6V 16.5 ~ 19.5V 26.4 ~ 31.2V 39.6 ~46.8V 52.8 ~ 62.4V 60 ~ 69V Protection type :Shut down O/P voltage,re-power on to recover |
| OVER TEMPERATURE | Protection type :Shut down O/P voltage, recovers automatically after temperature goes down |
| DC OK SIGNAL(Optional) | Contact rating(max.):15Vdc/10mA resistive load |
| REDUNDANT(Optional) | For parallel connection protection:For parallel applications, when one PSU can not work , the another one will be automatically enabled. This can prevent the system crash, and provide the reliability of system |
| WORKING TEMP. | -30 ~ +70℃(Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes |
| SAFETY STANDARDS | UL 62368-1,TUV BS EN/EN62368-1,BS EN/EN60335-1(Except for 55V),BS EN/EN61558-1, BS EN/EN61558-2-16,GB 4943.1,BSMI CNS15598-1,EAC TP TC 004,BIS IS13252(Part1)/IEC60950-1 (except for 4.2V/15V/48V/55V) approved,Design refer to AS/NZS 61558.1/2.16,AS/NZS 62368.1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG:100M Ohms/500VDC/25℃/ 70%RH |
| EMC EMISSION | Compliance to BS EN/EN55032,GB17625.1,GB/T 9254.1,Class B, BS EN/EN55014,BS EN/EN61000-3-2,-3, BSMI CNS15936, EAC TP TC 020 |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN55035, heavy industry level ,EAC TP TC 020 |
| MTBF | 1791.2 K hrs min. Telcordia SR-332 (Bellcore) ; 253.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 220*62*31mm (L*W*H) |
| PACKING | 0.68 kg;16 pcs/11.88 kg/0.63CUFT |
| Tùy chọn đặc biệt của mã này | |
| R | Built-in DC OK active signal and redundant function. In Stock |
