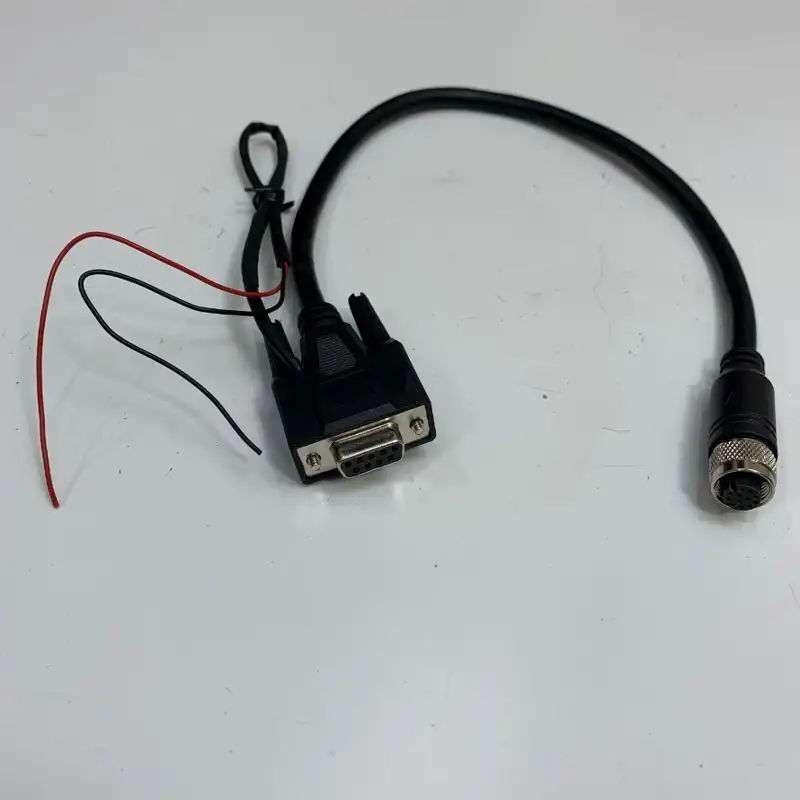

Cáp Điều Khiển CCBL-05-01 Dài 38Cm 1.2ft Cable M12 A-Code 12 Pin Female to DB9 Female RS232 Serial + DC Power Supply Extension Cable For Cognex Industrial Barcode Camera Reader

PRODUCT DESCRIPTION

Brand: Thientruongpc – ViệtNam/Thientruongpc

Manufacturer: Sensor/Actuator Connectors

Connector Series: M12 Circular interface

Contacts Poles: 12 Pin

Connector Gender: Female connector

Coding: A-Coded

Current Rating: 1.5 A

Voltage Rating: 30V

Contact Resistance: ≤ 10 mOhm

Insulation Resistance: ˃ 10^9 Ohm

Mating Cycles: ≤ 100

Ambient Temperature (Operation): – 25 °C – + 90 °C

Ingress Protection: IP67

Conductor Size: 12 x 0.25mm²

Shieding: Metal shell shielding

Connection direction: Straight

Cable Jacket: PVC, PUR, halogen-free, TPE 80℃, Custom cable material

Outside diameter: 7.0mm

Cable E326837 AWM STYLE 20276 80C 30V VW-1 FT1

Colour: Black

Length: 0.38Cm

Side 1 Connector Type: M12 A-Code

Side 1 Connector Gender: Female

Side 2 Connector Type: DB9 Female

Side 2 Connector Type: DC Power Supply Extension

Cáp Điều Khiển CCBL-05-01 Dài 38Cm 1.2ft Cable M12 A-Code 12 Pin Female to DB9 Female RS232 Serial + DC Power Supply Extension Cable For Cognex Industrial Barcode Camera Reader
