Communication Industrial I/O Breakout Cable Power Supply Camera Cable
Brand: China/Original Industrial Cable
Model: DM300-M12I/0-F12SR-3M
Connector 1: M12 A-Code 12 Pin Female
Connector 2: 2 Core Open End
Connector 2: DC 5.5x 2.1mm Female
Number of Conductors: 2
Connector plating: Gold Plated/Nickle Plated
Gender: M12 A-Code 12 Pin Female to 2 Core Open End + DC 5.5x 2.1mm Female
Wire: ILSAN E211405 AWM 2517 105°C 300V VW-1 AWM II A 105°C 300V FT2 2Pr X 24AWG (0.22SQ)SB IMOTPEV-S CE RoHS
Wire Gauge (AWG): 24AWG
Outside diameter: 6.4mm
Shield structure: Shielded
Current Rating: 2A
Voltage Rating: 300V
Contact Resistance: ≤ 10 mOhm
Insulation Resistance: ˃ 10^9 Ohm
Mating Cycles: ≤ 100
Ambient Temperature (Operation): – 25 °C – + 90 °C
Ingress Protection: IP67
Temperature flexible: -5° to +80°
Temperature fixed: -40° to + 80°
Material: Cu
Cable Jacket Material PVC – Polyvinyl Chloride
Cable Length: 3.2M [9.6ft]
Color: Black

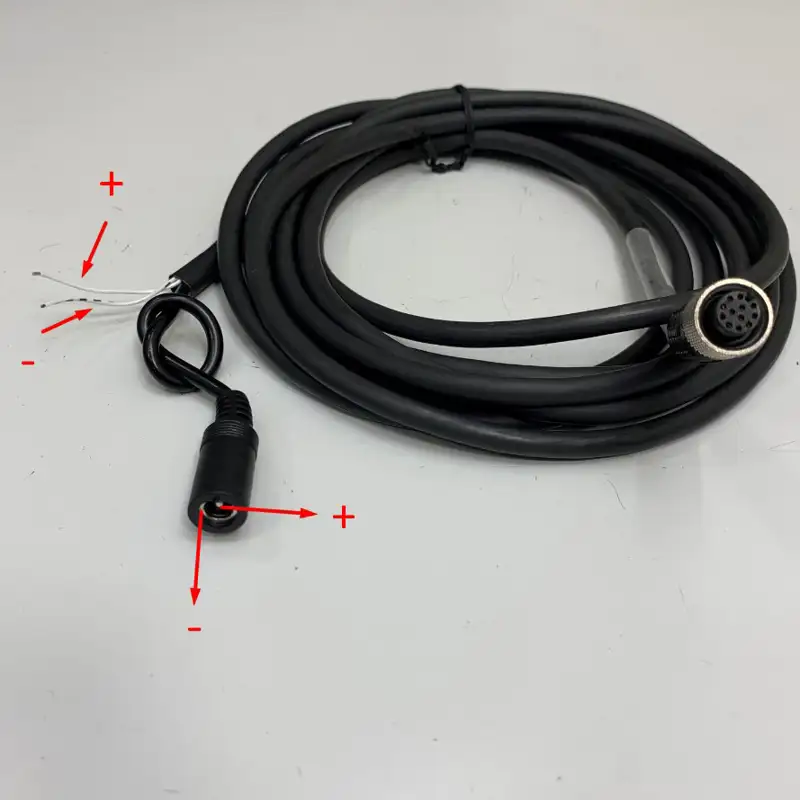

Cáp DM300-M12I/0-F12SR-3M Dài 3.2M 9.6ft Cable M12 A-Code 12 Pin Female to DC 5.5x 2.1mm Female + 2 Core Open End Power Cable For Cognex Industrial Camera
Liên hệ
Vui lòng liên hệ Hải Phòng Tech để biết thêm thông tin về sản phẩm.
