Thông số kỹ thuật GST25E07
| Thông số | Giá trị |
|---|---|
| Mã sản phẩm | GST25E07 |

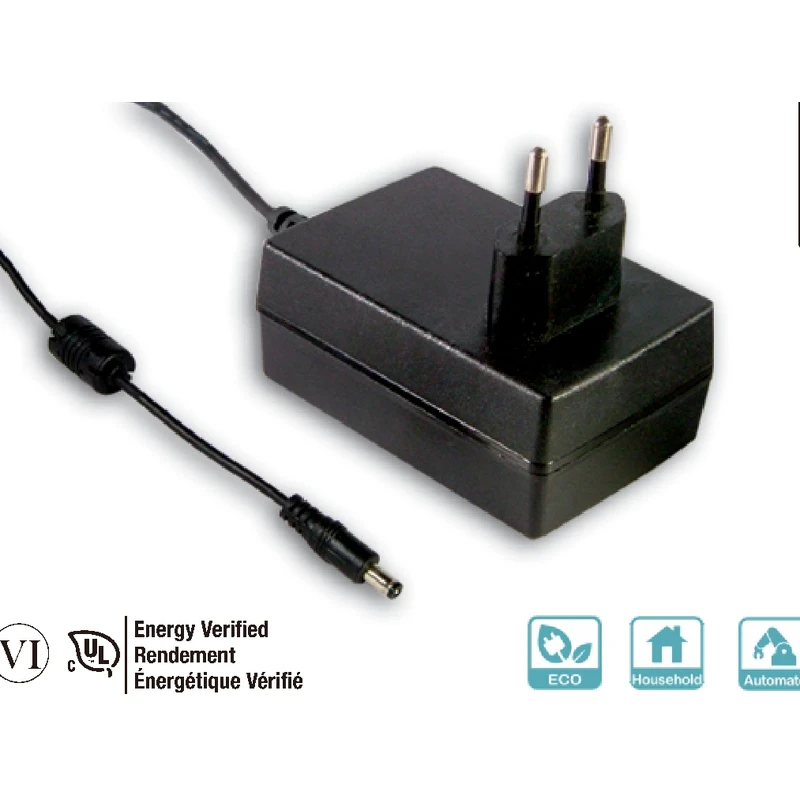

| Tên sản phẩm | GST25E07 25W AC-DC Reliable Green Industrial Adaptor |
| DC VOLTAGE Note.2 | 7.5V |
| RATED CURRENT | 2.93A |
| CURRENT RANGE | 0 ~ 2.93A |
| RATED POWER (max.) | 22W |
| RIPPLE & NOISE (max.) Note.3 | 80mVp-p |
| VOLTAGE TOLERANCE Note.4 | ±5.0% |
| LINE REGULATION Note.5 | ±1.0% |
| LOAD REGULATION Note.6 | ±5.0% |
| SETUP, RISE, HOLD UP TIME | 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load |
| VOLTAGE RANGE Note.7 | 85 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 84.5% |
| AC CURRENT | 0.6A / 115VAC 0.35A / 230VAC |
| NRUSH CURRENT (max.) | Cold start 35A / 115VAC 65A / 230VAC |
| LEAKAGE CURRENT(max.) | 0.25mA / 240VAC |
| OVERLOAD | 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 110 ~ 140% rated output voltage Protection type : Clamp by zener diode |
| WORKING TEMP. | -30 ~ +70℃ (Refer to “Derating Curve”) |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing |
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
| SAFETY STANDARDS Note. 8 | TUV EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4242VDC |
| SOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
| DIMENSION | 79*54*33mm (L*W*H) |
| PACKING | 202.5g; 60pcs/13.2Kg/1.15CUFT |
| PLUG | See page 4~5 ; Other type available by customer requested |
